(二十)在线教育网站搭建一采用dubbo服务注册和发现

dubbo构建项目

1. dubbo配置

#teacher
server.port=8001
dubbo.application.name=edu-teacher
dubbo.registry.address=zookeeper://192.168.0.100:2181
dubbo.protocol.name=dubbo
dubbo.protocol.port=28001
dubbo.consumer.check=false

#aliyun
server.port=8002

2. Spring-Data-Elasticsearch

https://docs.spring.io/spring-data/elasticsearch/docs/

https://docs.spring.io/spring-data/elasticsearch/docs/3.2.4.RELEASE/reference/html/#preface.versions

Spring Data Release Train	Spring Data Elasticsearch	Elasticsearch	Spring Boot
Moore	3.2.x	6.8.4	2.2.x
Lovelace	3.1.x	6.2.2	2.1.x
Kay[1]	3.0.x[1]	5.5.0	2.0.x[1]
Ingalls[1]	2.1.x[1]	2.4.0	1.5.x[1]

版本不相配！！

3. Elasticsearch+jestClient

3.1. Maven依赖

<!-- elasticsearch-5.6.11 -->
<dependency>
    <groupId>org.elasticsearch</groupId>
    <artifactId>elasticsearch</artifactId>
    <version>5.6.11</version>
</dependency>

<!-- jestclient -->
<dependency>
    <groupId>io.searchbox</groupId>
    <artifactId>jest</artifactId>
    <version>5.3.3</version>
</dependency>
<!-- test -->
<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-test</artifactId>
    <scope>test</scope>
    <exclusions>
        <exclusion>
            <groupId>org.junit.vintage</groupId>
            <artifactId>junit-vintage-engine</artifactId>
        </exclusion>
    </exclusions>
</dependency>
<dependency>
    <groupId>junit</groupId>
    <artifactId>junit</artifactId>
    <version>4.12</version>
    <scope>test</scope>
</dependency>

3.2. 配置application.properties

server.port=9999

spring.elasticsearch.jest.uris= http://192.168.0.101:9200
spring.elasticsearch.jest.read-timeout=6s

3.3. 创建index和mapping

https://github.com/searchbox-io/Jest/tree/master/jest

在索引online下创建teacher类型的mapping

name, intro, career 采用ik分词器，分的时候用ik_max_word 尽量分最大词，查找的时候用ik_smart智能查找

@Test
void TestMapping() throws IOException {
  String str = "{\"mappings\": {\"user\":{ \"properties\":{\n" +
          "      \"id\":{\"type\":\"text\"},\n" +
          "      \"name\":{\"type\":\"text\",\"analyzer\":\"ik_max_word\",\"search_analyzer\":\"ik_smart\"},\n"
          "      \"password\":{\"type\":\"text\"},\n" +
          "      \"video\":{\"type\":\"text\"}\n"
          "    }}}\n" +
          "}";
  System.out.println(str);
  CreateIndex index = new CreateIndex.Builder("online").settings(str).build();
  JestResult execute = jestClient.execute(index);
  System.out.println(execute.getJsonObject());
}

3.4. CRUD

3.4.1. 新增

@RunWith(SpringRunner.class)
@SpringBootTest
class TestApplicationTests {

    //@Autowired
    //UserRepository userRepository;

    @Autowired
    JestClient jestClient;

   @Test
    void TestElastic() throws IOException {

        User user= new User();
        user.setId("1");
        user.setUsername("abc");
        user.setPassword("123456");
        Index index = new Index.Builder(user).index("online").type("user").id("1").build();

        DocumentResult execute = jestClient.execute(index);

        System.out.println(execute.getJsonString());
    }
}

结果

{
 "_index":"online",
 "_type":"user",
 "_id":"1",
 "_version":1,
 "result":"created",
 "_shards":{
   "total":2,
   "successful":2,
   "failed":0
 },
 "created":true
}

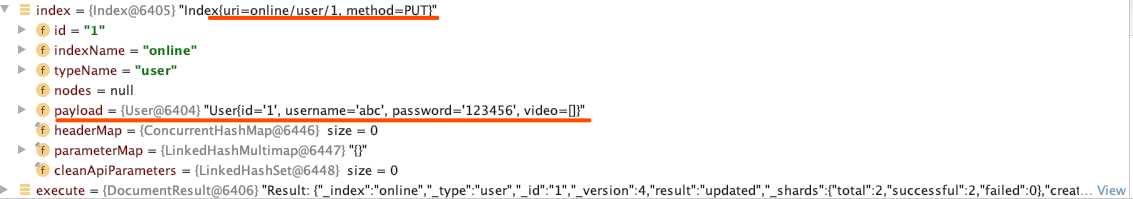

3.4.1.1. 源代码-默认有id用PUT

//
// Source code recreated from a .class file by IntelliJ IDEA
// (powered by Fernflower decompiler)
//

package io.searchbox.core;

import io.searchbox.action.AbstractAction;
import io.searchbox.action.BulkableAction;
import io.searchbox.action.SingleResultAbstractDocumentTargetedAction;
import java.util.Collection;

public class Index extends SingleResultAbstractDocumentTargetedAction implements BulkableAction<DocumentResult> {
    protected Index(Index.Builder builder) {
        super(builder);
        this.payload = builder.source;
    }

    public String getPathToResult() {
        return "ok";
    }

    public String getRestMethodName() {
        return this.id != null ? "PUT" : "POST";
    }

    public String getBulkMethodName() {
        Collection<Object> opType = this.getParameter("op_type");
        if (opType != null) {
            if (opType.size() > 1) {
                throw new IllegalArgumentException("Expecting a single value for OP_TYPE parameter, you provided: " + opType.size());
            } else {
                return opType.size() == 1 && opType.iterator().next().toString().equalsIgnoreCase("create") ? "create" : "index";
            }
        } else {
            return "index";
        }
    }

    public static class Builder extends io.searchbox.action.AbstractDocumentTargetedAction.Builder<Index, Index.Builder> {
        private final Object source;

        public Builder(Object source) {
            this.source = source;
            this.id(AbstractAction.getIdFromSource(source));
        }

        public Index build() {
            return new Index(this);
        }
    }
}

3.4.2. 更新

@Test
void TestUpdate() throws IOException {
    User user= new User();
    List<String> list = new ArrayList<>();
    list.add("1");
    list.add("2");
    list.add("3");
    list.add("4");
    user.setVideo(list);
    Index index = new Index.Builder(user).index("online").type("user").id("1").build();

    DocumentResult execute = jestClient.execute(index);
    System.out.println(execute.getJsonString());
}

结果

{
  "_index":"online",
  "_type":"user",
  "_id":"1",
  "_version":3,
  "result":"updated",
  "_shards":{
    "total":2,
    "successful":2,
    "failed":0
  },
  "created":false
}

3.4.3. 查看

@Test
void TestSearch() throws IOException {

    String str="{\n" +
            "  \"query\":{\n" +
            "    \"match_all\":{}\n" +
            "  }\n" +
            "  \n" +
            "}";
    Search search = new Search.Builder(str).addIndex("online").build();
    SearchResult execute = jestClient.execute(search);

    List<SearchResult.Hit<User, Void>> hits = execute.getHits(User.class);
    for (SearchResult.Hit<User, Void> hit:hits) {
        System.out.println(hit.source);
    }
}

结果

User{id='null', username='null', password='null', video=[1, 2, 3, 4]}

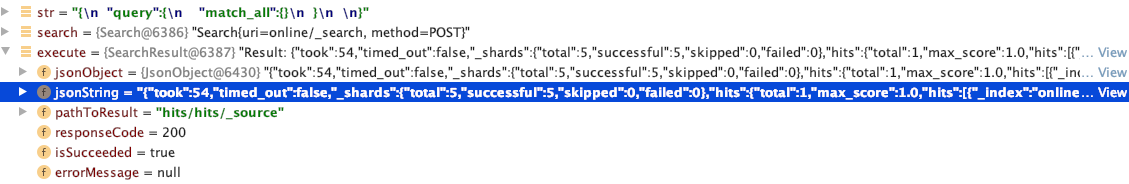

3.4.3.1. 源代码-采用 POST 请求

//
// Source code recreated from a .class file by IntelliJ IDEA
// (powered by Fernflower decompiler)
//

package io.searchbox.core;

import com.google.gson.Gson;
import com.google.gson.JsonArray;
import com.google.gson.JsonElement;
import com.google.gson.JsonObject;
import com.google.gson.JsonPrimitive;
import com.google.gson.JsonSyntaxException;
import io.searchbox.action.AbstractAction;
import io.searchbox.action.AbstractMultiTypeActionBuilder;
import io.searchbox.client.config.ElasticsearchVersion;
import io.searchbox.core.search.sort.Sort;
import io.searchbox.params.SearchType;
import java.util.ArrayList;
import java.util.Collection;
import java.util.Iterator;
import java.util.LinkedList;
import java.util.List;
import java.util.Objects;

public class Search extends AbstractAction<SearchResult> {
    private String query;
    private List<Sort> sortList;
    protected List<String> includePatternList;
    protected List<String> excludePatternList;
    private final String templateSuffix;

    protected Search(Search.Builder builder) {
        this(builder, "");
    }

    protected Search(Search.TemplateBuilder templatedBuilder) {
        this(templatedBuilder, "/template");
    }

    private Search(Search.Builder builder, String templateSuffix) {
        super(builder);
        this.query = builder.query;
        this.sortList = builder.sortList;
        this.includePatternList = builder.includePatternList;
        this.excludePatternList = builder.excludePatternList;
        this.templateSuffix = templateSuffix;
    }

    public SearchResult createNewElasticSearchResult(String responseBody, int statusCode, String reasonPhrase, Gson gson) {
        return (SearchResult)this.createNewElasticSearchResult(new SearchResult(gson), responseBody, statusCode, reasonPhrase, gson);
    }

    public String getIndex() {
        return this.indexName;
    }

    public String getType() {
        return this.typeName;
    }

    protected String buildURI(ElasticsearchVersion elasticsearchVersion) {
        return super.buildURI(elasticsearchVersion) + "/_search" + this.templateSuffix;
    }

    public String getPathToResult() {
        return "hits/hits/_source";
    }

    public String getRestMethodName() {
        return "POST";
    }

    public String getData(Gson gson) {
        String data;
        if (this.sortList.isEmpty() && this.includePatternList.isEmpty() && this.excludePatternList.isEmpty()) {
            data = this.query;
        } else {
            JsonObject queryObject = (JsonObject)gson.fromJson(this.query, JsonObject.class);
            if (queryObject == null) {
                queryObject = new JsonObject();
            }

            if (!this.sortList.isEmpty()) {
                JsonArray sortArray = normalizeSortClause(queryObject);
                Iterator var5 = this.sortList.iterator();

                while(var5.hasNext()) {
                    Sort sort = (Sort)var5.next();
                    sortArray.add(sort.toJsonObject());
                }
            }

            if (!this.includePatternList.isEmpty() || !this.excludePatternList.isEmpty()) {
                JsonObject sourceObject = normalizeSourceClause(queryObject);
                addPatternListToSource(sourceObject, "includes", this.includePatternList);
                addPatternListToSource(sourceObject, "excludes", this.excludePatternList);
            }

            data = gson.toJson(queryObject);
        }

        return data;
    }

    private static JsonArray normalizeSortClause(JsonObject queryObject) {
        JsonArray sortArray;
        if (queryObject.has("sort")) {
            JsonElement sortElement = queryObject.get("sort");
            if (sortElement.isJsonArray()) {
                sortArray = sortElement.getAsJsonArray();
            } else if (sortElement.isJsonObject()) {
                sortArray = new JsonArray();
                sortArray.add(sortElement.getAsJsonObject());
            } else {
                if (!sortElement.isJsonPrimitive() || !sortElement.getAsJsonPrimitive().isString()) {
                    throw new JsonSyntaxException("_source must be an array, an object or a string");
                }

                String sortField = sortElement.getAsString();
                sortArray = new JsonArray();
                queryObject.add("sort", sortArray);
                String order;
                if ("_score".equals(sortField)) {
                    order = "desc";
                } else {
                    order = "asc";
                }

                JsonObject sortOrder = new JsonObject();
                sortOrder.add("order", new JsonPrimitive(order));
                JsonObject sortDefinition = new JsonObject();
                sortDefinition.add(sortField, sortOrder);
                sortArray.add(sortDefinition);
            }
        } else {
            sortArray = new JsonArray();
        }

        queryObject.add("sort", sortArray);
        return sortArray;
    }

    private static JsonObject normalizeSourceClause(JsonObject queryObject) {
        JsonObject sourceObject;
        if (queryObject.has("_source")) {
            JsonElement sourceElement = queryObject.get("_source");
            if (sourceElement.isJsonObject()) {
                sourceObject = sourceElement.getAsJsonObject();
            } else if (sourceElement.isJsonArray()) {
                sourceObject = new JsonObject();
                queryObject.add("_source", sourceObject);
                sourceObject.add("includes", sourceElement.getAsJsonArray());
            } else {
                if (!sourceElement.isJsonPrimitive() || !sourceElement.getAsJsonPrimitive().isBoolean()) {
                    throw new JsonSyntaxException("_source must be an object, an array or a boolean");
                }

                sourceObject = new JsonObject();
            }
        } else {
            sourceObject = new JsonObject();
        }

        queryObject.add("_source", sourceObject);
        return sourceObject;
    }

    private static void addPatternListToSource(JsonObject sourceObject, String rule, List<String> patternList) {
        if (!patternList.isEmpty()) {
            JsonArray ruleArray;
            if (sourceObject.has(rule)) {
                ruleArray = sourceObject.get(rule).getAsJsonArray();
            } else {
                ruleArray = new JsonArray();
                sourceObject.add(rule, ruleArray);
            }

            Iterator var4 = patternList.iterator();

            while(var4.hasNext()) {
                String pattern = (String)var4.next();
                ruleArray.add(pattern);
            }
        }

    }

    public int hashCode() {
        return Objects.hash(new Object[]{super.hashCode(), this.query, this.sortList, this.includePatternList, this.excludePatternList});
    }

    public boolean equals(Object obj) {
        if (obj == null) {
            return false;
        } else if (obj == this) {
            return true;
        } else if (obj.getClass() != this.getClass()) {
            return false;
        } else {
            Search rhs = (Search)obj;
            return super.equals(obj) && Objects.equals(this.query, rhs.query) && Objects.equals(this.sortList, rhs.sortList) && Objects.equals(this.includePatternList, rhs.includePatternList) && Objects.equals(this.excludePatternList, rhs.excludePatternList);
        }
    }

    public static class TemplateBuilder extends Search.Builder {
        public TemplateBuilder(String templatedQuery) {
            super(templatedQuery);
        }

        public Search build() {
            return new Search(this);
        }
    }

    public static class VersionBuilder extends Search.Builder {
        public VersionBuilder(String query) {
            super(query);
            this.setParameter("version", "true");
        }
    }

    public static class Builder extends AbstractMultiTypeActionBuilder<Search, Search.Builder> {
        protected String query;
        protected List<Sort> sortList = new LinkedList();
        protected List<String> includePatternList = new ArrayList();
        protected List<String> excludePatternList = new ArrayList();

        public Builder(String query) {
            this.query = query;
        }

        public Search.Builder setSearchType(SearchType searchType) {
            return (Search.Builder)this.setParameter("search_type", searchType);
        }

        public Search.Builder enableTrackScores() {
            this.setParameter("track_scores", true);
            return this;
        }

        public Search.Builder addSort(Sort sort) {
            this.sortList.add(sort);
            return this;
        }

        public Search.Builder addSourceExcludePattern(String excludePattern) {
            this.excludePatternList.add(excludePattern);
            return this;
        }

        public Search.Builder addSourceIncludePattern(String includePattern) {
            this.includePatternList.add(includePattern);
            return this;
        }

        public Search.Builder addSort(Collection<Sort> sorts) {
            this.sortList.addAll(sorts);
            return this;
        }

        public Search build() {
            return new Search(this);
        }
    }
}

put新增后，原ID，username，password不见了？

3.4.4. 新增属性用POST

@Test
void TestSearch() throws IOException {

    List<String> list = new ArrayList<>();
    list.add("1");
    list.add("2");
    list.add("3");
    list.add("4");
    String str = "{\n" +
        "  \"doc\":{\n" +
        "    \"video\":"+list+"\n" +
        "  }\n" +
        "}";
    Update update = new Update.Builder(str).index("online").type("user").id("1").build();
    DocumentResult execute = jestClient.execute(update);
    System.out.println(execute.getJsonString());
}

3.4.4.1. 源码采用 POST的_update

//
// Source code recreated from a .class file by IntelliJ IDEA
// (powered by Fernflower decompiler)
//

package io.searchbox.core;

import io.searchbox.action.BulkableAction;
import io.searchbox.action.SingleResultAbstractDocumentTargetedAction;
import io.searchbox.client.config.ElasticsearchVersion;

public class Update extends SingleResultAbstractDocumentTargetedAction implements BulkableAction<DocumentResult> {
    protected Update(Update.Builder builder) {
        super(builder);
        this.payload = builder.payload;
    }

    public String getBulkMethodName() {
        return "update";
    }

    protected String buildURI(ElasticsearchVersion elasticsearchVersion) {
        return super.buildURI(elasticsearchVersion) + "/_update";
    }

    public String getRestMethodName() {
        return "POST";
    }

    public String getPathToResult() {
        return "ok";
    }

    public static class VersionBuilder extends Update.Builder {
        public VersionBuilder(Object payload, Long version) {
            super(payload);
            this.setParameter("version", version);
        }
    }

    public static class Builder extends io.searchbox.action.AbstractDocumentTargetedAction.Builder<Update, Update.Builder> {
        private final Object payload;

        public Builder(Object payload) {
            this.payload = payload;
        }

        public Update build() {
            return new Update(this);
        }
    }
}

3.4.5. 删除

@Test
void TestDelete() throws IOException {
    Delete delete = new Delete.Builder("").index("online").build();
    DocumentResult execute = jestClient.execute(delete);
    System.out.println(execute.isSucceeded());

}

3.4.5.1. 源代码 -DELETE请求

//
// Source code recreated from a .class file by IntelliJ IDEA
// (powered by Fernflower decompiler)
//

package io.searchbox.core;

import io.searchbox.action.BulkableAction;
import io.searchbox.action.SingleResultAbstractDocumentTargetedAction;

public class Delete extends SingleResultAbstractDocumentTargetedAction implements BulkableAction<DocumentResult> {
    protected Delete(Delete.Builder builder) {
        super(builder);
    }

    public String getRestMethodName() {
        return "DELETE";
    }

    public String getPathToResult() {
        return "ok";
    }

    public String getBulkMethodName() {
        return "delete";
    }

    public static class Builder extends io.searchbox.action.AbstractDocumentTargetedAction.Builder<Delete, Delete.Builder> {
        public Builder(String id) {
            this.id(id);
        }

        public Delete build() {
            return new Delete(this);
        }
    }
}

4. dubbo集群容错

http://dubbo.apache.org/zh-cn/docs/source_code_guide/cluster.html

5. 图片无法传输

java.lang.IllegalStateException: Serialized class org.apache.catalina.core.ApplicationPart must implement java.io.Serializable

dubbo适用范围：传入传出参数数据包较小（建议小于100K），消费者比提供者个数多，单一消费者无法压满提供者，尽量不要用 dubbo 协议传输大文件或超大字符串。

采用字节流传输

6. teacher-mapping

@Test
void TestMapping() throws IOException {
  String str = "{\"mappings\": {\"teacher\":{ \"properties\":{\n" +
          "      \"id\":{\"type\":\"text\"},\n" +
          "      \"avatar\":{\"type\":\"text\"},\n" +
          "      \"name\":{\"type\":\"text\",\"analyzer\":\"ik_max_word\",\"search_analyzer\":\"ik_smart\"},\n" +
          "      \"intro\":{\"type\":\"text\",\"analyzer\":\"ik_max_word\",\"search_analyzer\":\"ik_smart\"},\n" +
          "      \"career\":{\"type\":\"text\",\"analyzer\":\"ik_max_word\",\"search_analyzer\":\"ik_smart\"},\n" +
          "      \"level\":{\"type\":\"long\"},\n" +
          "      \"isDeleted\":{\"type\":\"boolean\"},\n" +
          "      \"gmtCreate\":{\"type\":\"date\",\"format\":\"yyyy-MM-dd HH:mm:ss\"},\n" +
          "      \"gmtModified\":{\"type\":\"date\",\"format\":\"yyyy-MM-dd HH:mm:ss\"},\n" +
          "      \"sort\":{\"type\":\"long\"}\n" +
          "    }}}\n" +
          "}";
  System.out.println(str);
  CreateIndex index = new CreateIndex.Builder("online").settings(str).build();
  JestResult execute = jestClient.execute(index);
  System.out.println(execute.getJsonObject());
}
